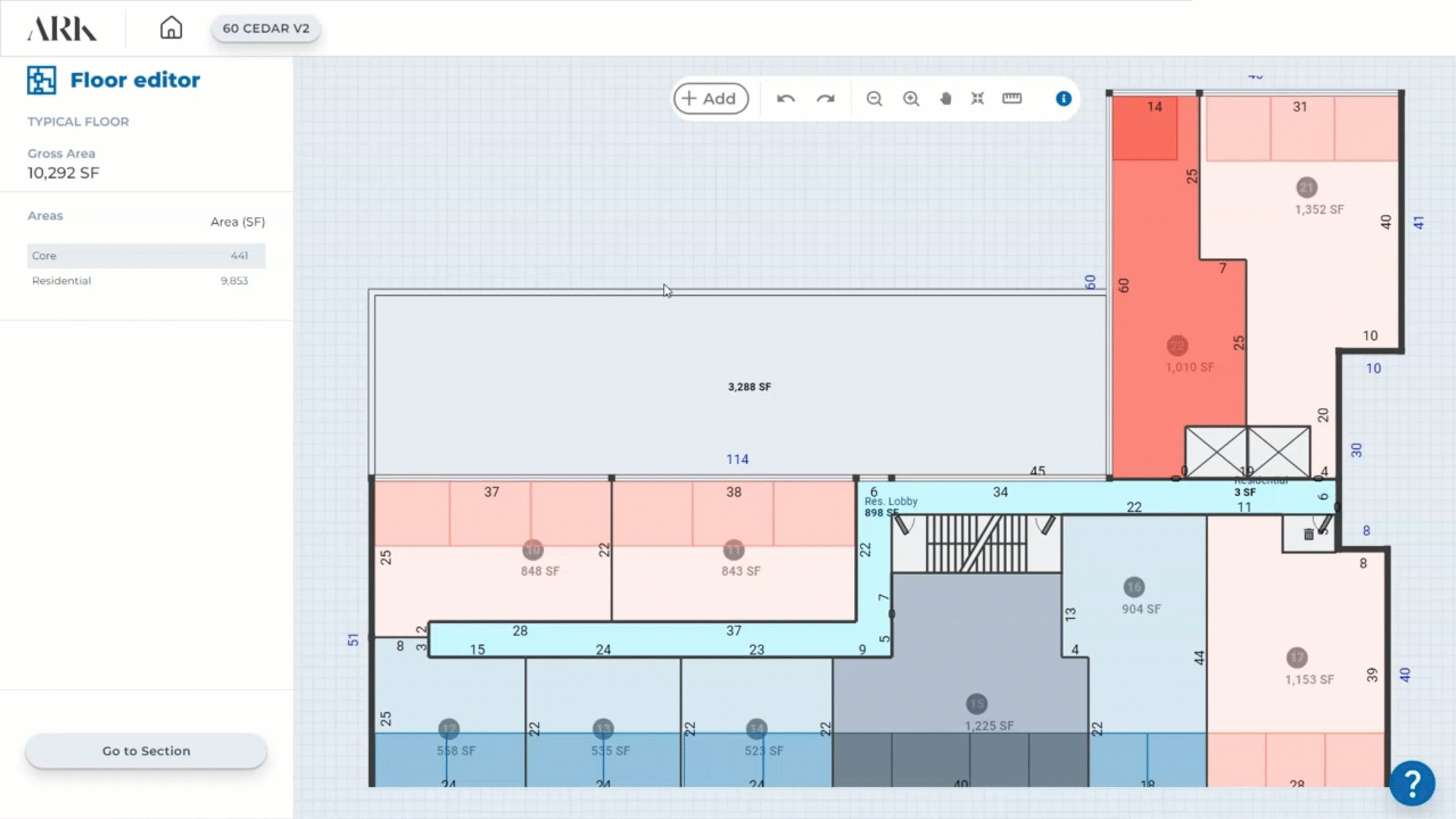

Go to the top panel.

Select the Dimension tool.

Select the dimension tool on the top panel.

Create a dimension with the arrow.

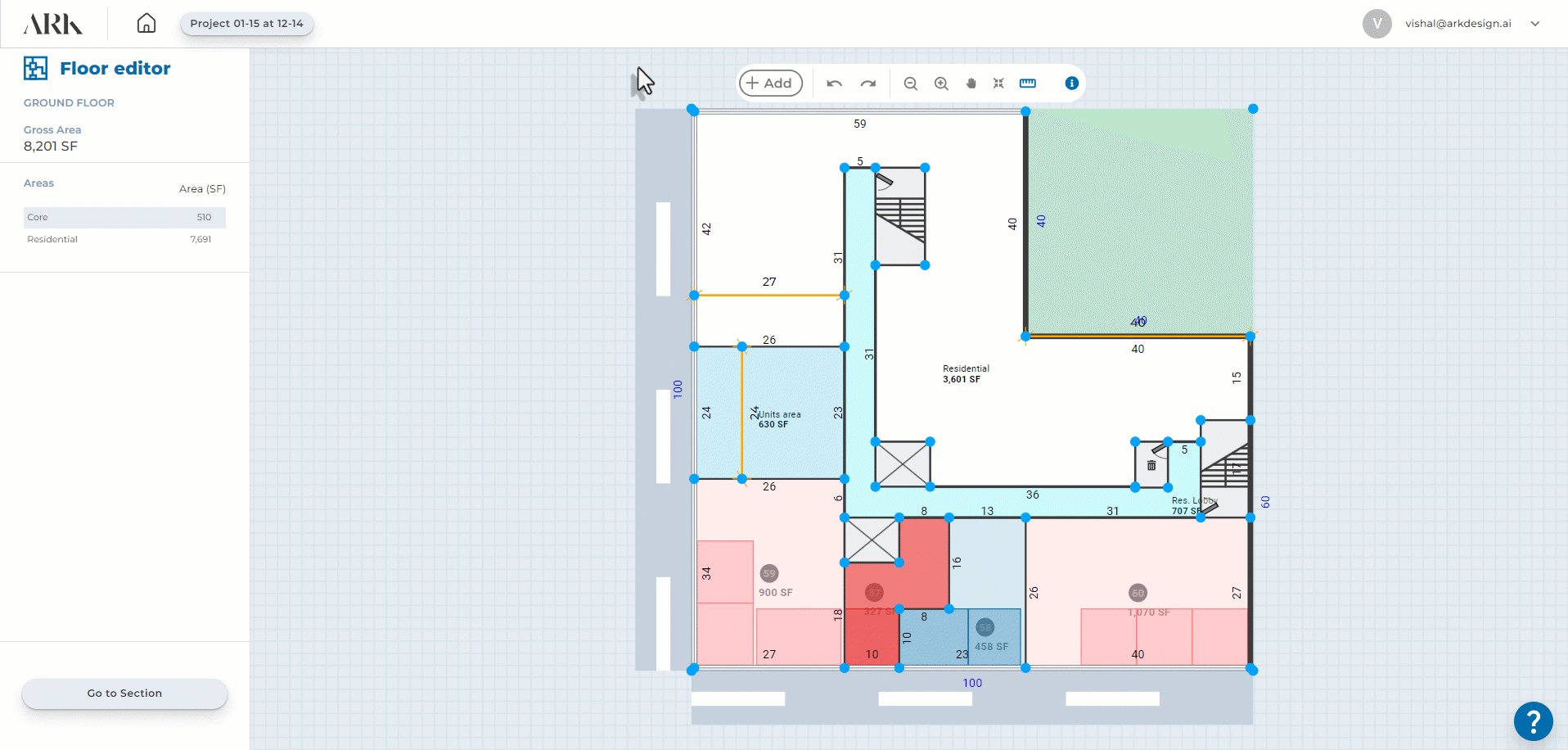

Click on dimension.

Grab and move.



Click on dimension.

Click on the remove icon on the upper bar.

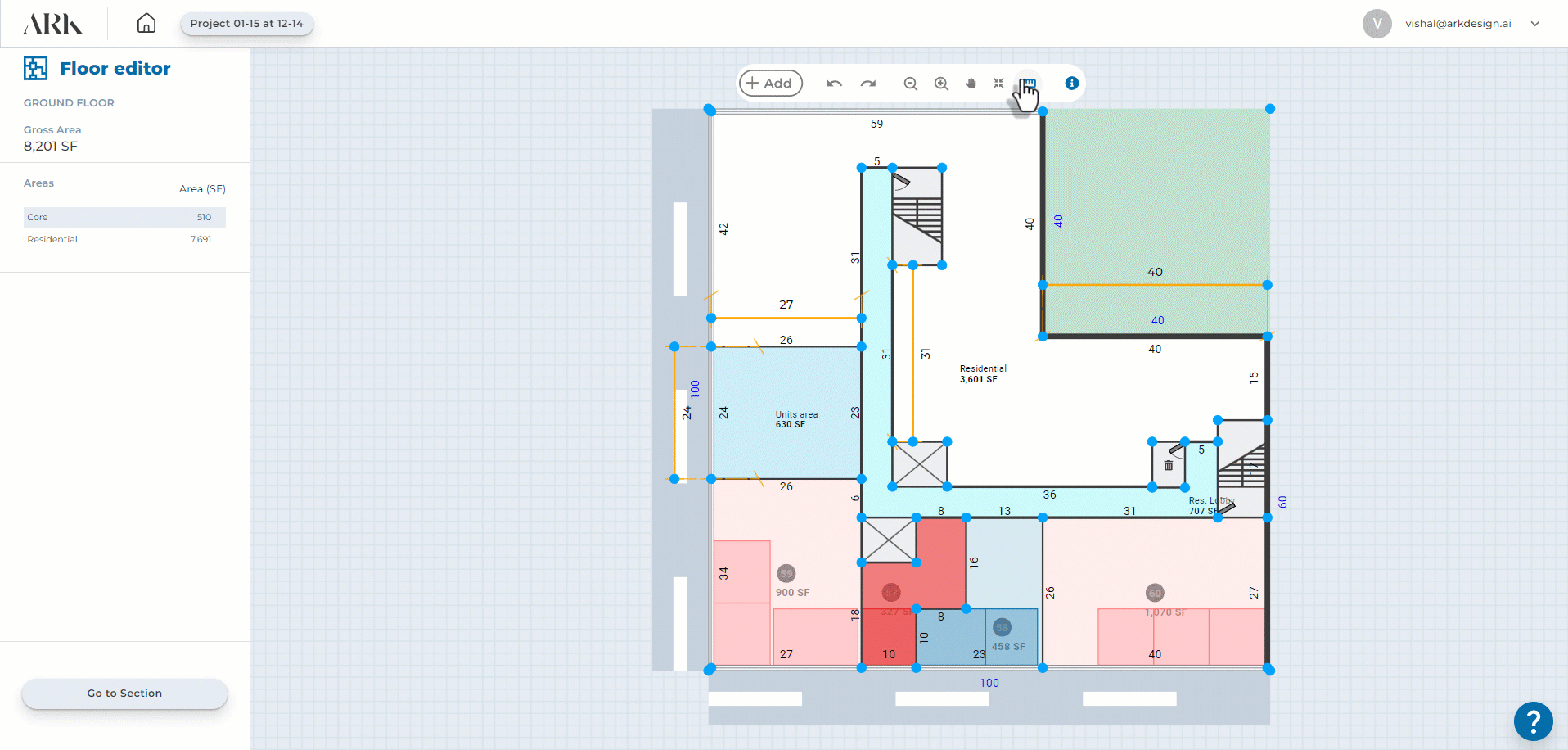

Click on the eye hide icon on the upper bar.

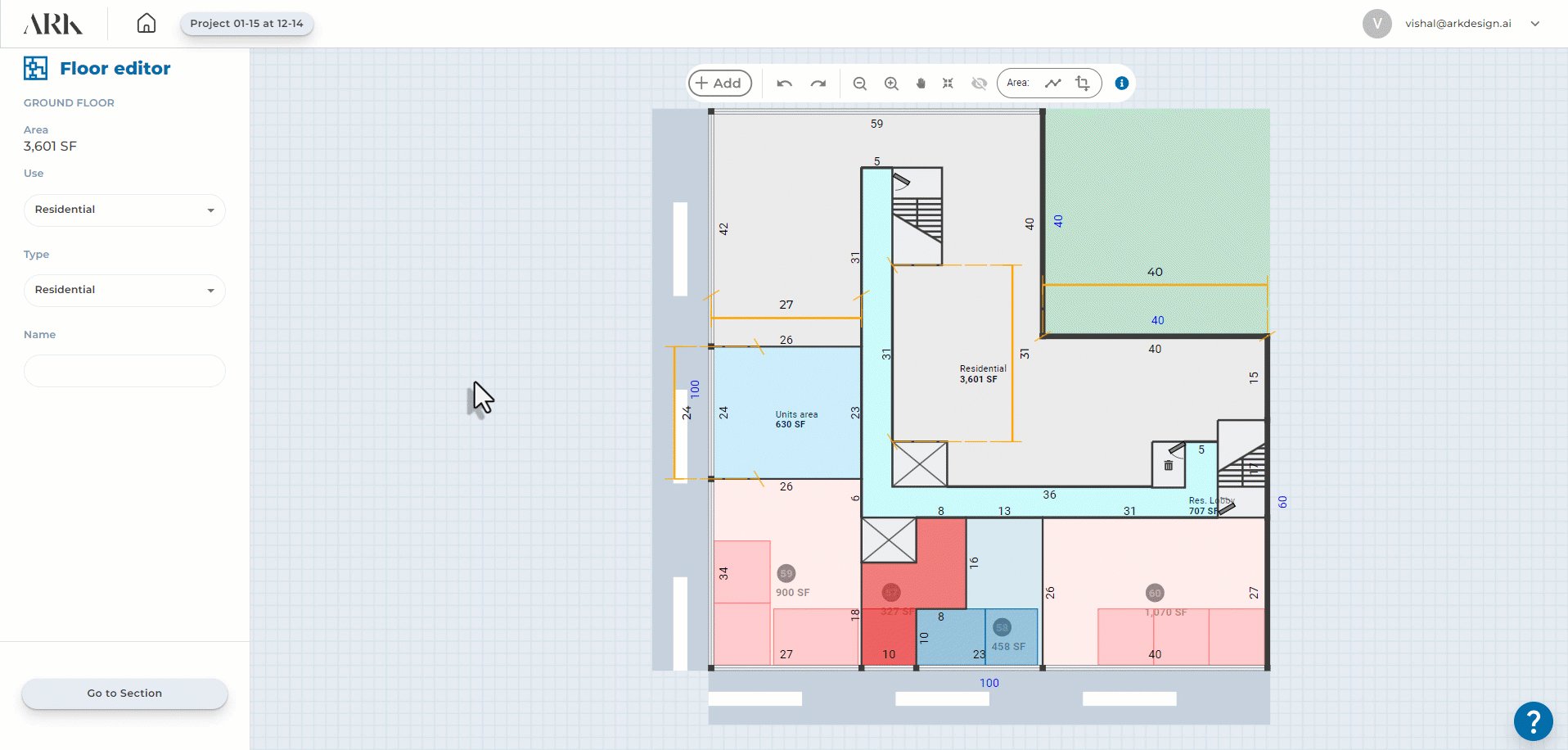

Click on dimension.

Click on the set position icon on the upper bar.

Set dimension position.

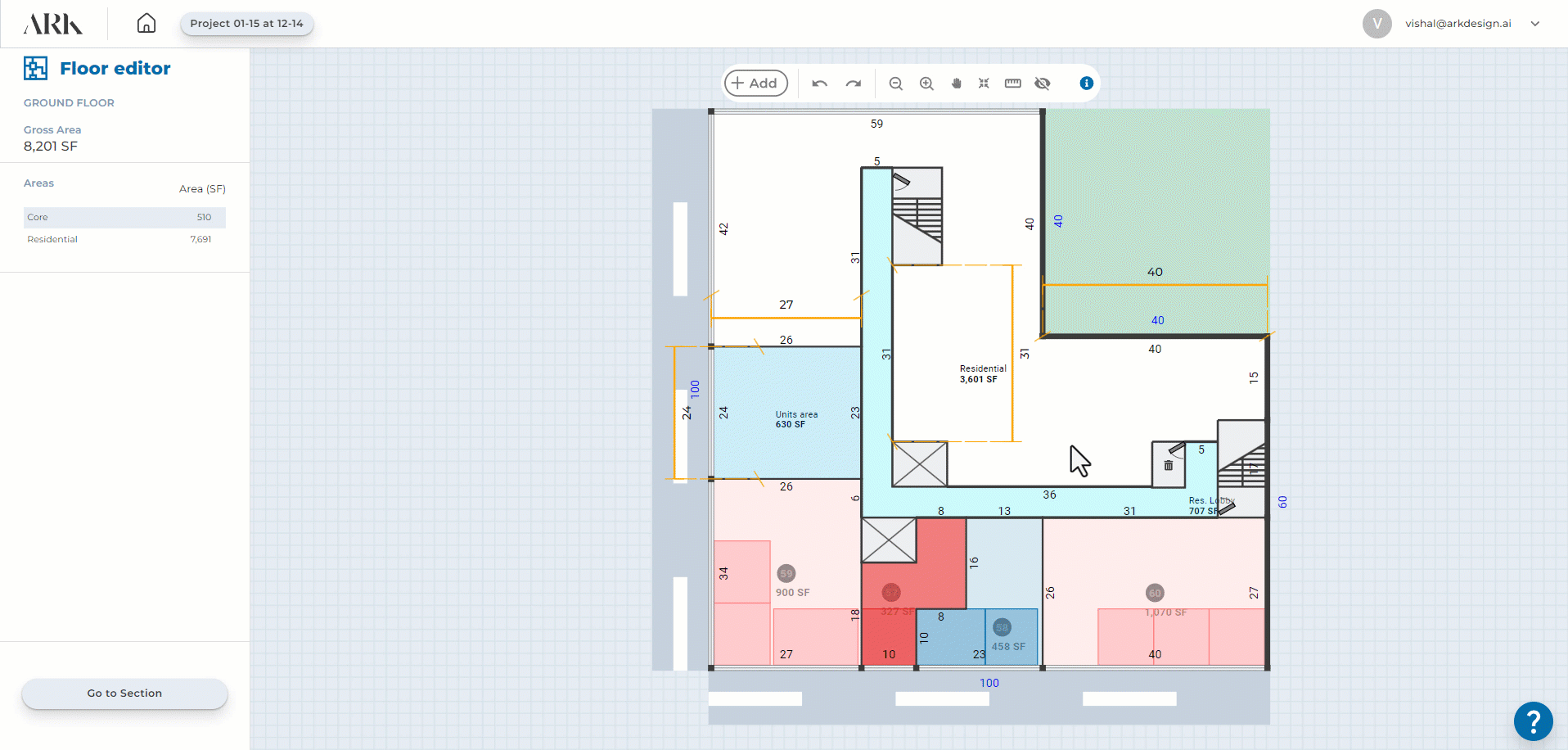

Click on dimension.

Click on the reset position icon on the upper bar.

Reset dimension position.
