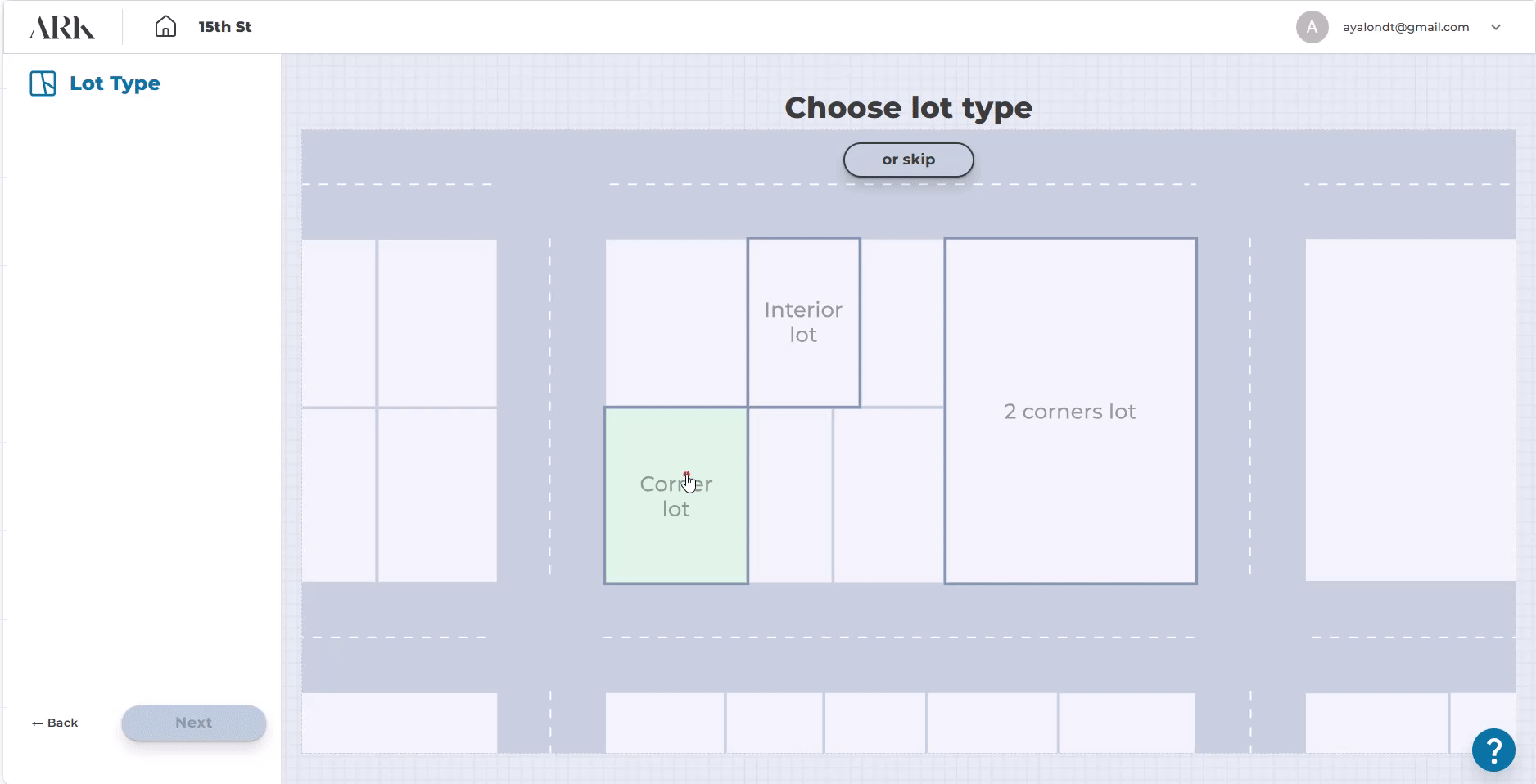

Choose any one of the lot type.

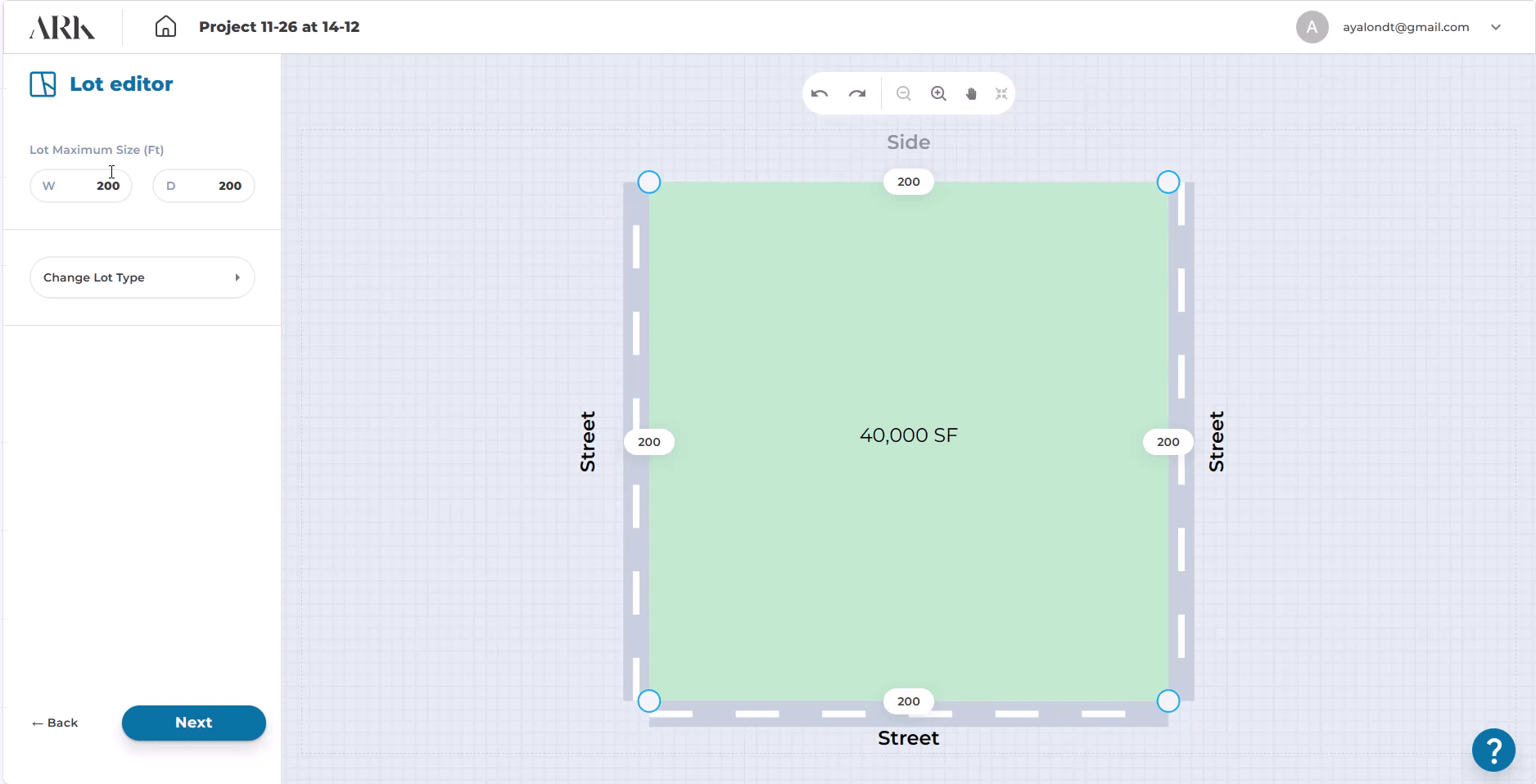

Lot Editor Screen, Left Panel
Lot Editor Screen, Left Panel
Click on a lot line.

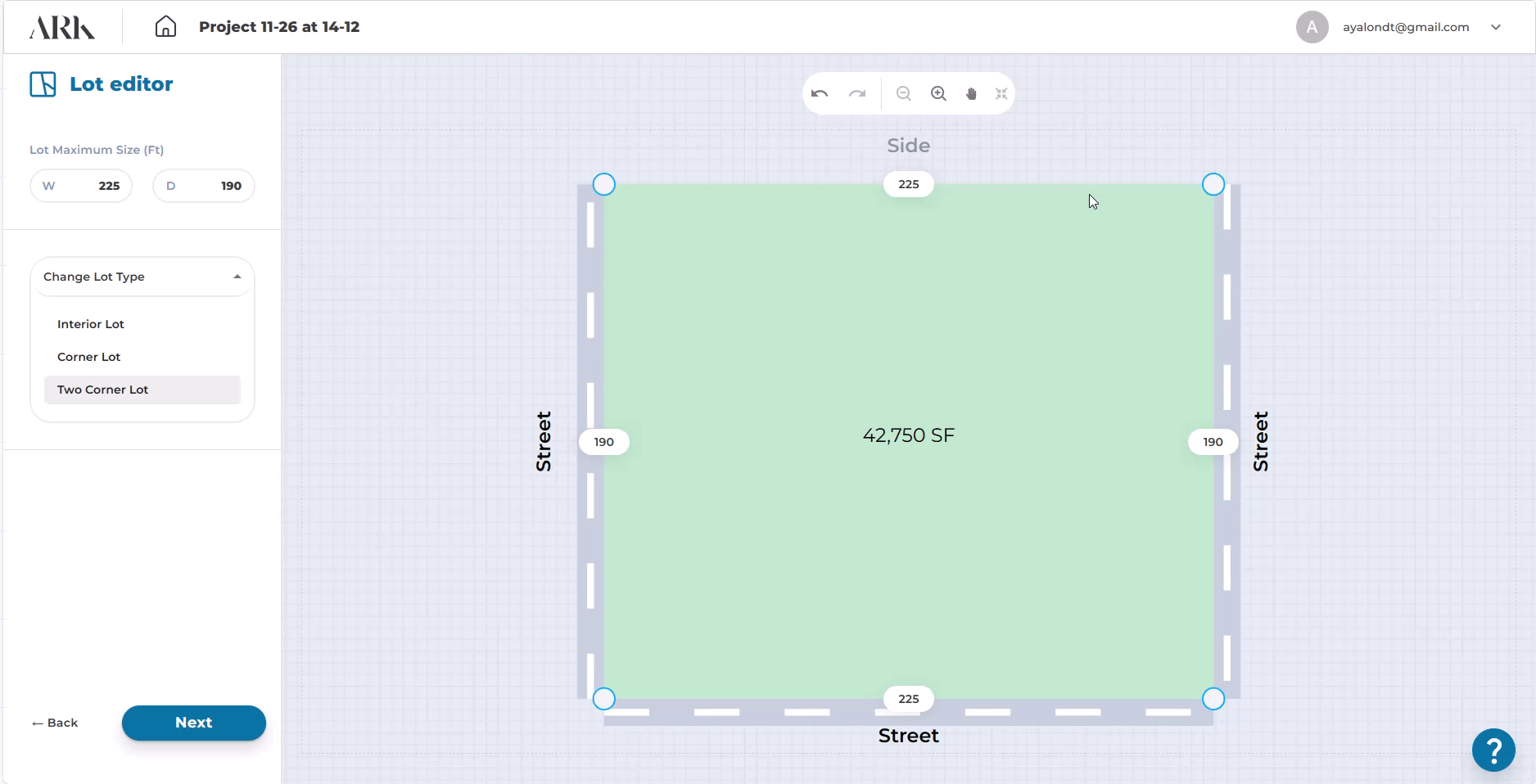

Click on the vertex that was created.
Split the lot line.

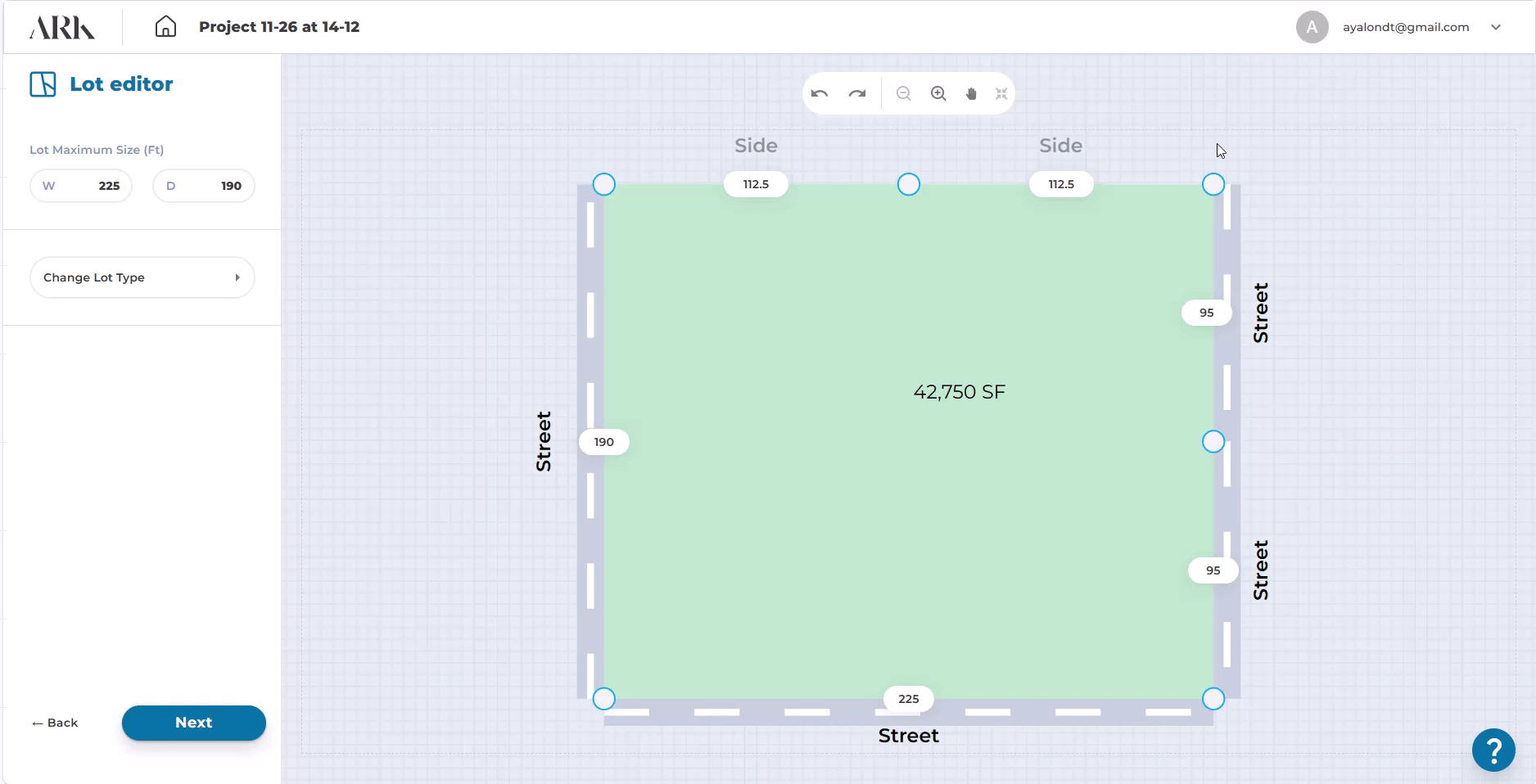

Grab a dot and move it to all directions.

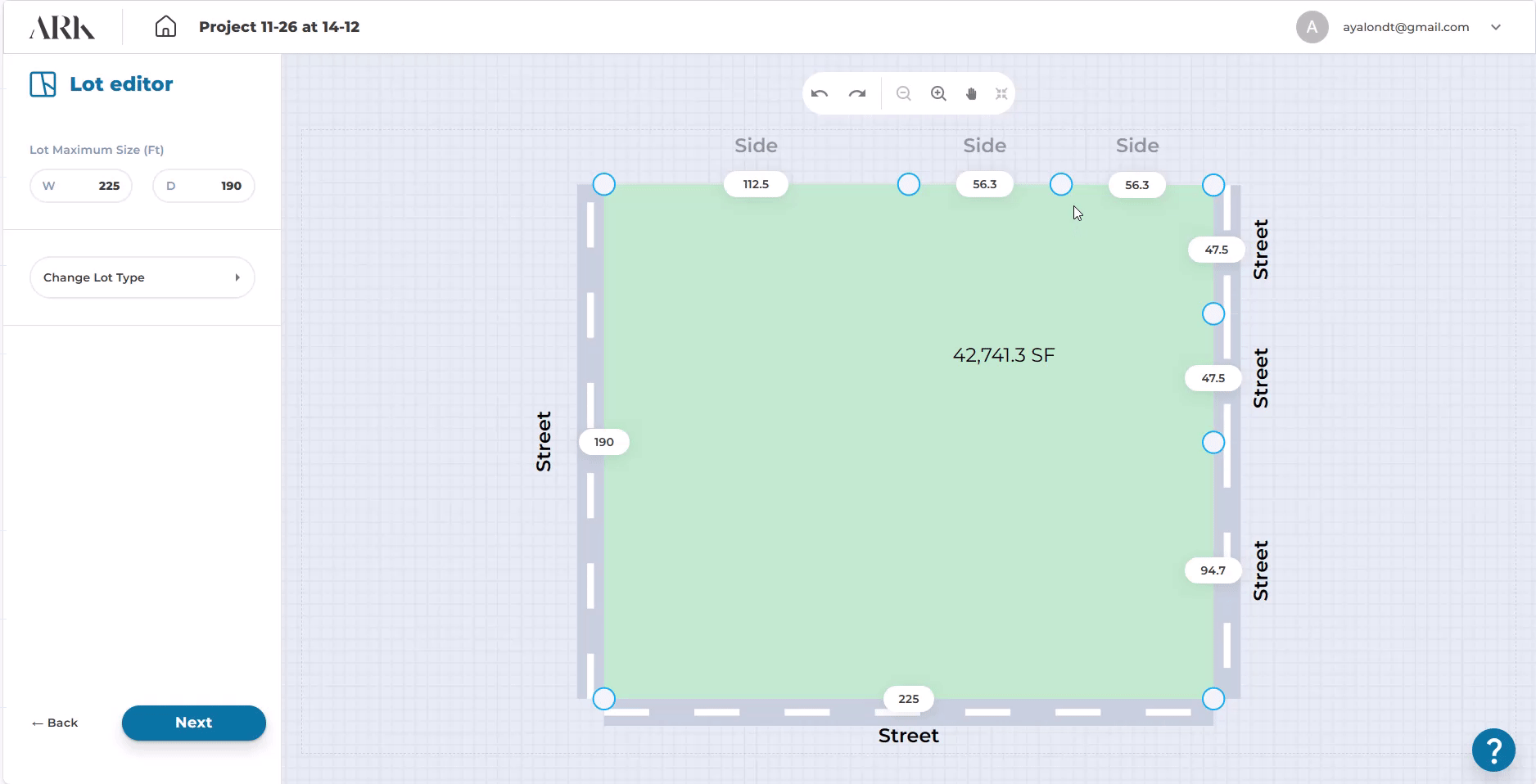

Right click on the dot and “remove”
Left panel or lot line dimensions.

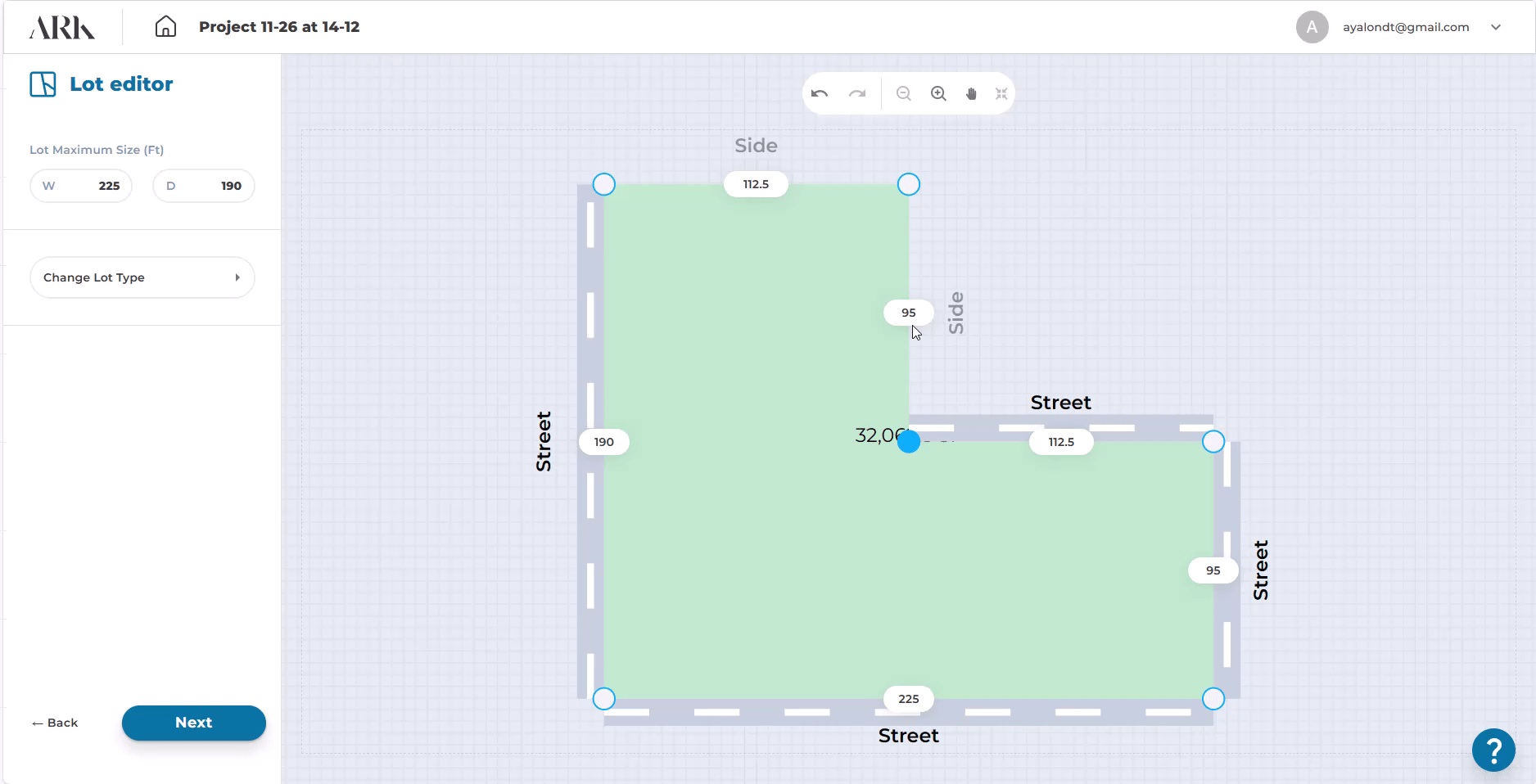

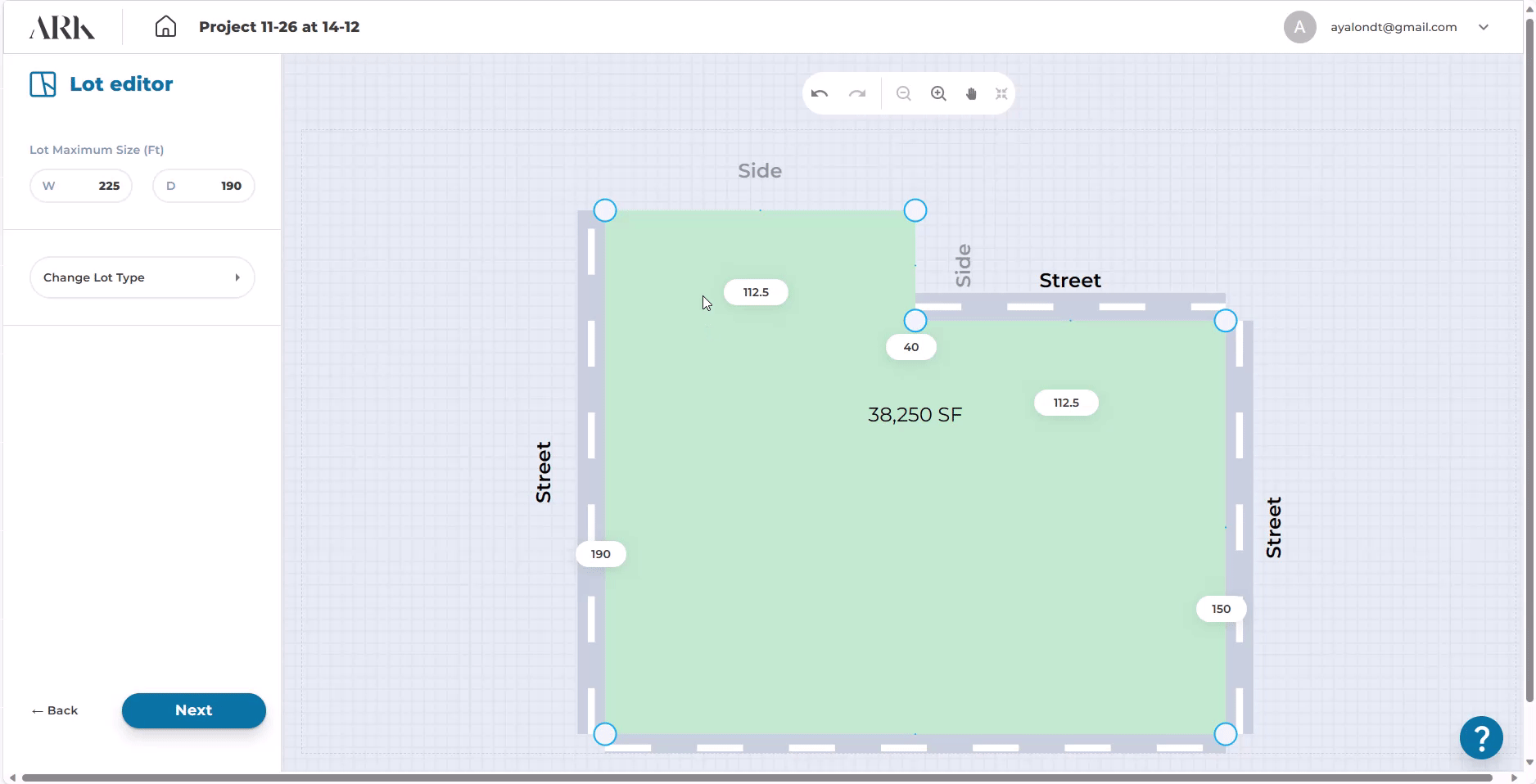

Grab and move the lot line.
Main panel, – Click on lot line.
Click on the “Pen Tool”.

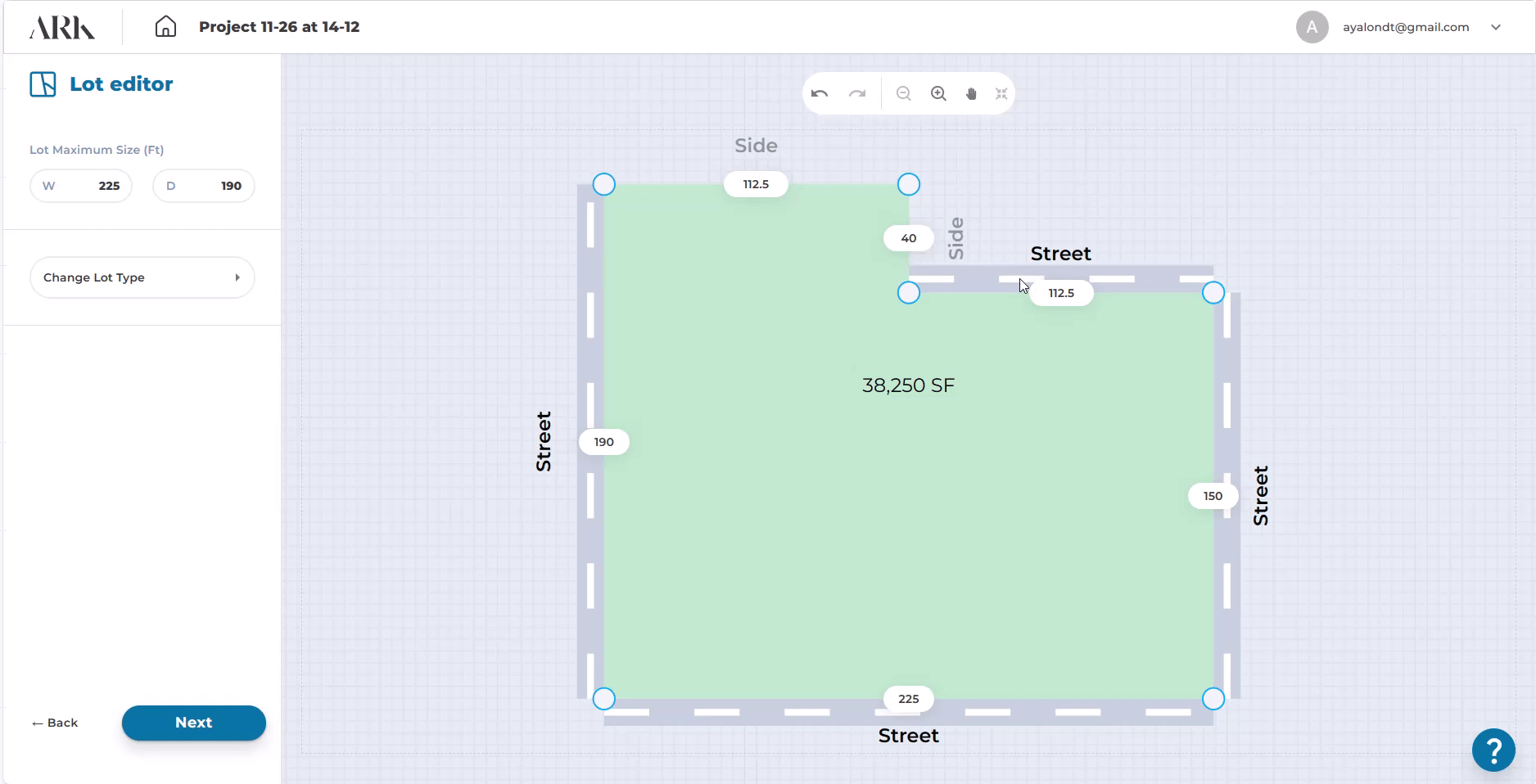

Under Line Settings – Click Side.
Turn On Adjacent Building and Input Building Information
Set lot type: Street/Side/Rear lot line.
For Side check box if there is adjacent building and insert metrics.
Main panel, Click on lot line.
Click on “Pen Tool”.

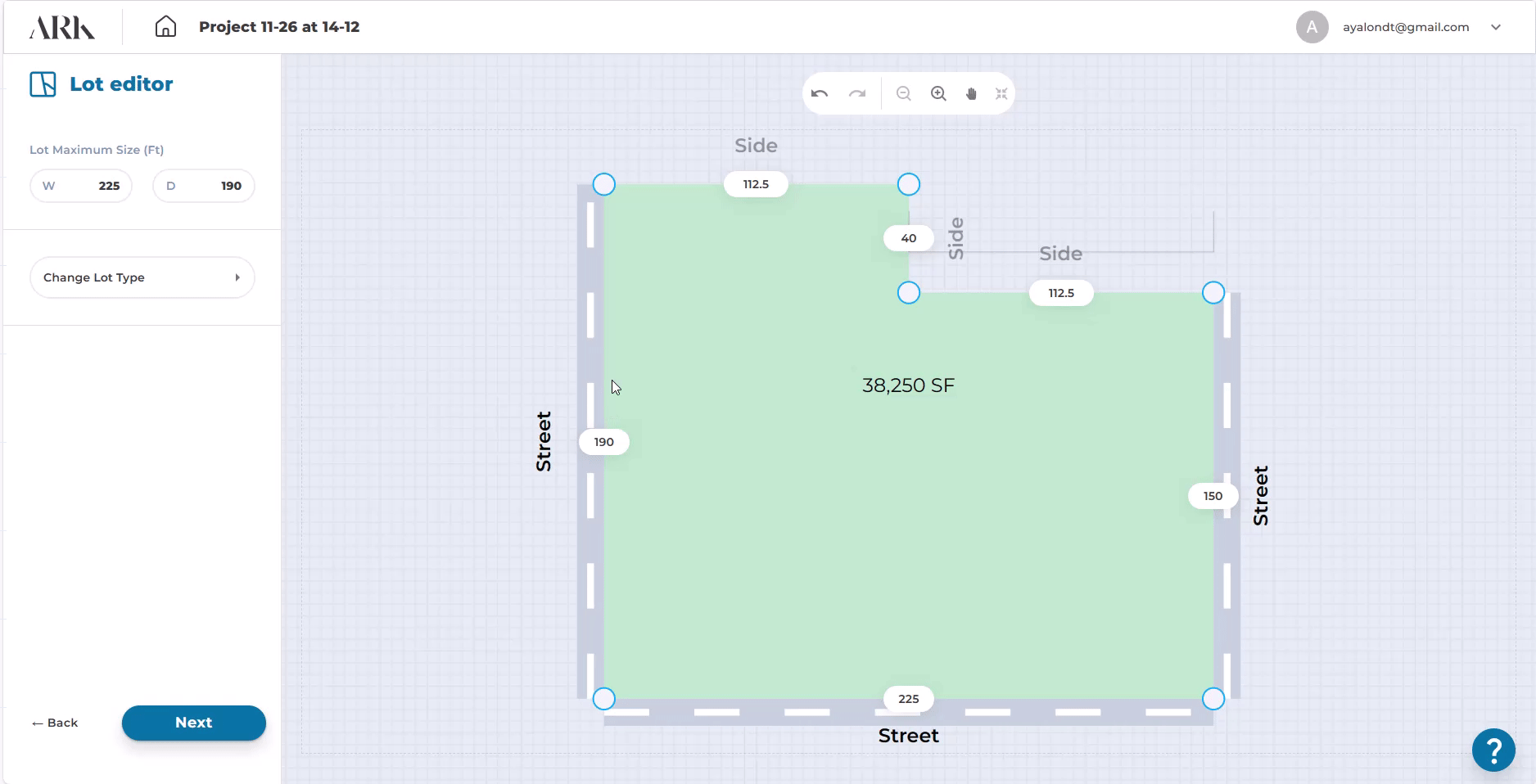

Set lot type: Street lot line and update wide/narrow.
Insert street name.
