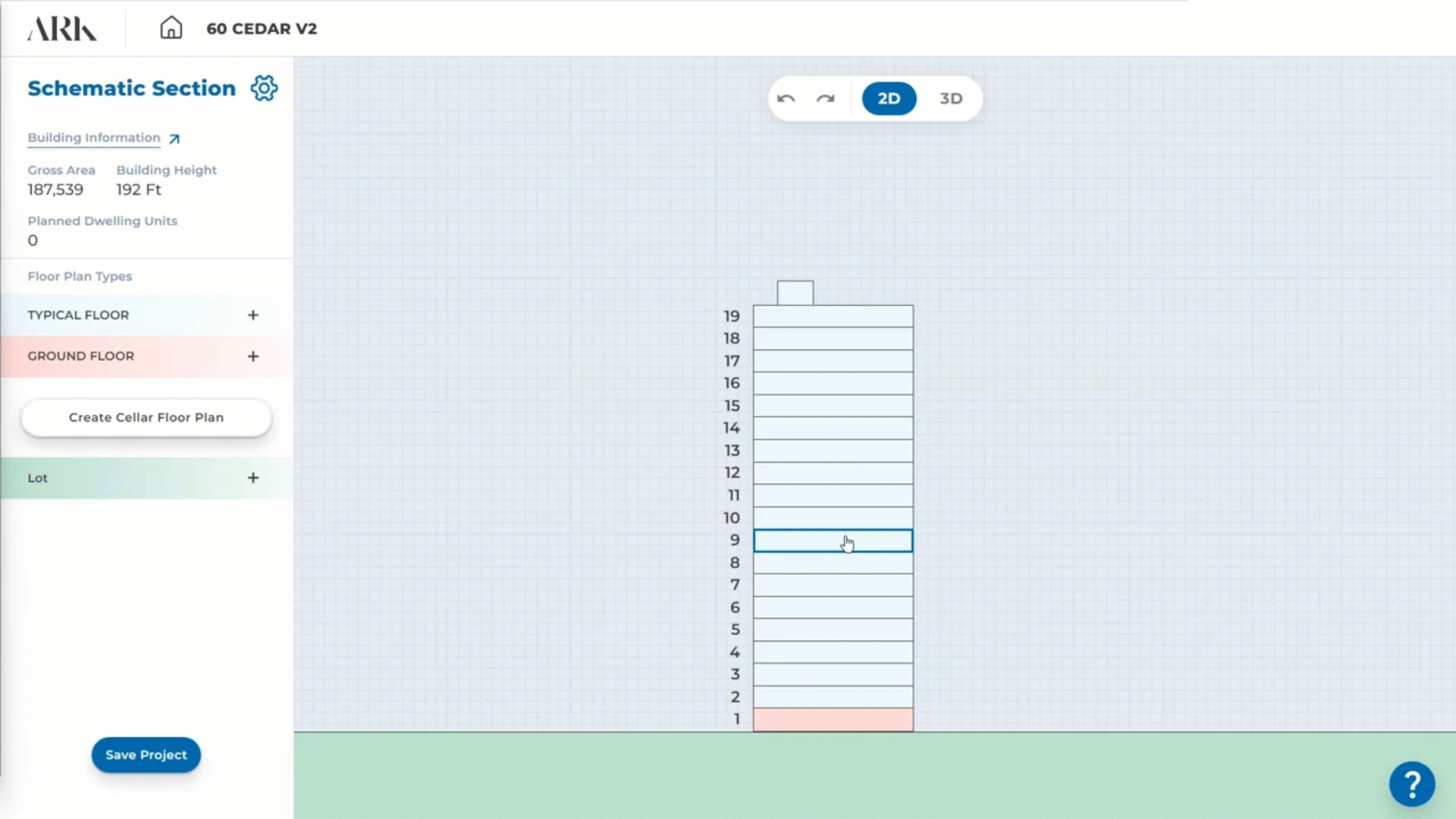

Click on floor type.

Floor type are all floors with the same color and same layout.

When editing a floor type it would apply to all the floors of that type.

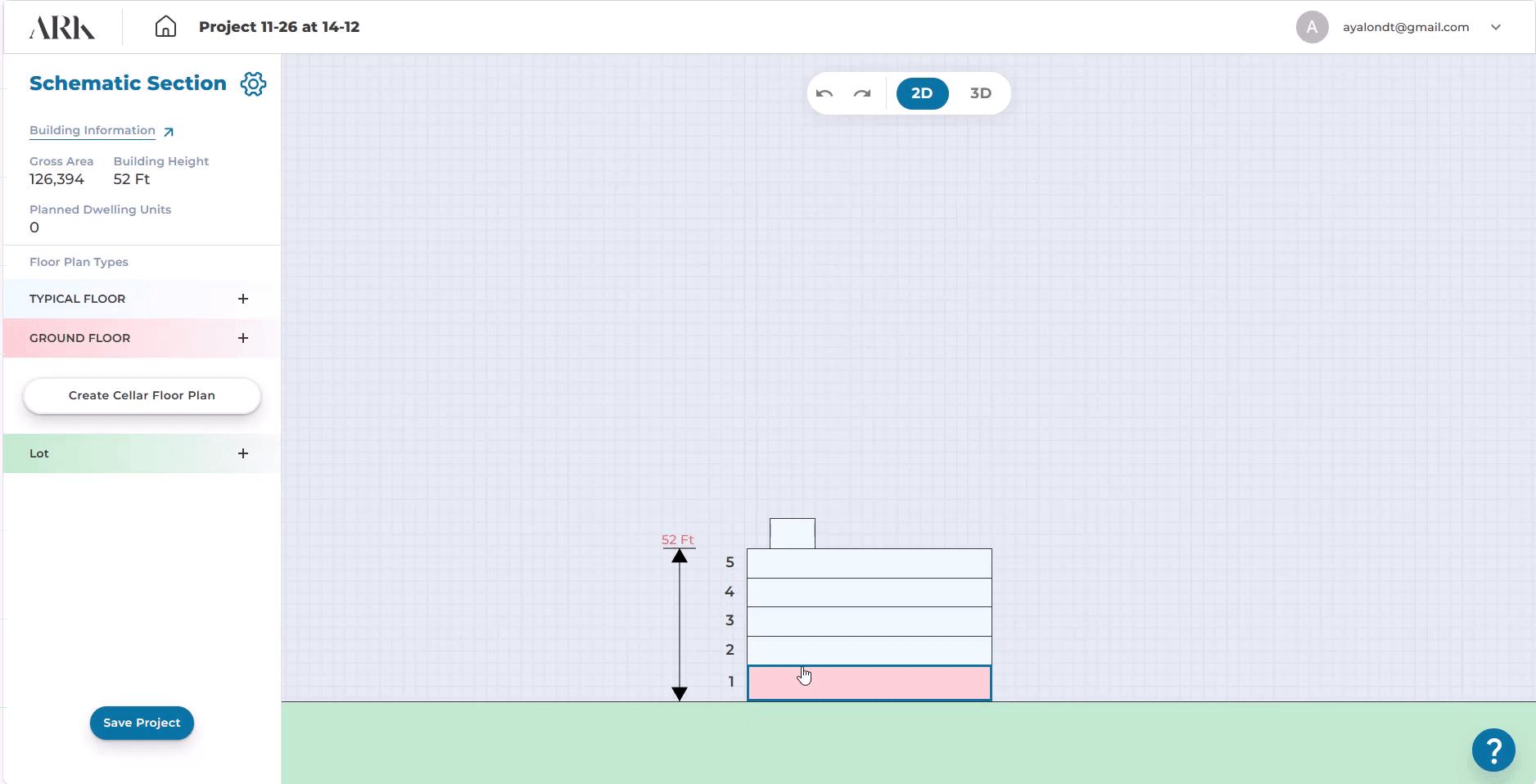

Main panel, double click on one floor

Double click on the floor.

Ctrl+click floors to add.

Click on the double arrows icon.

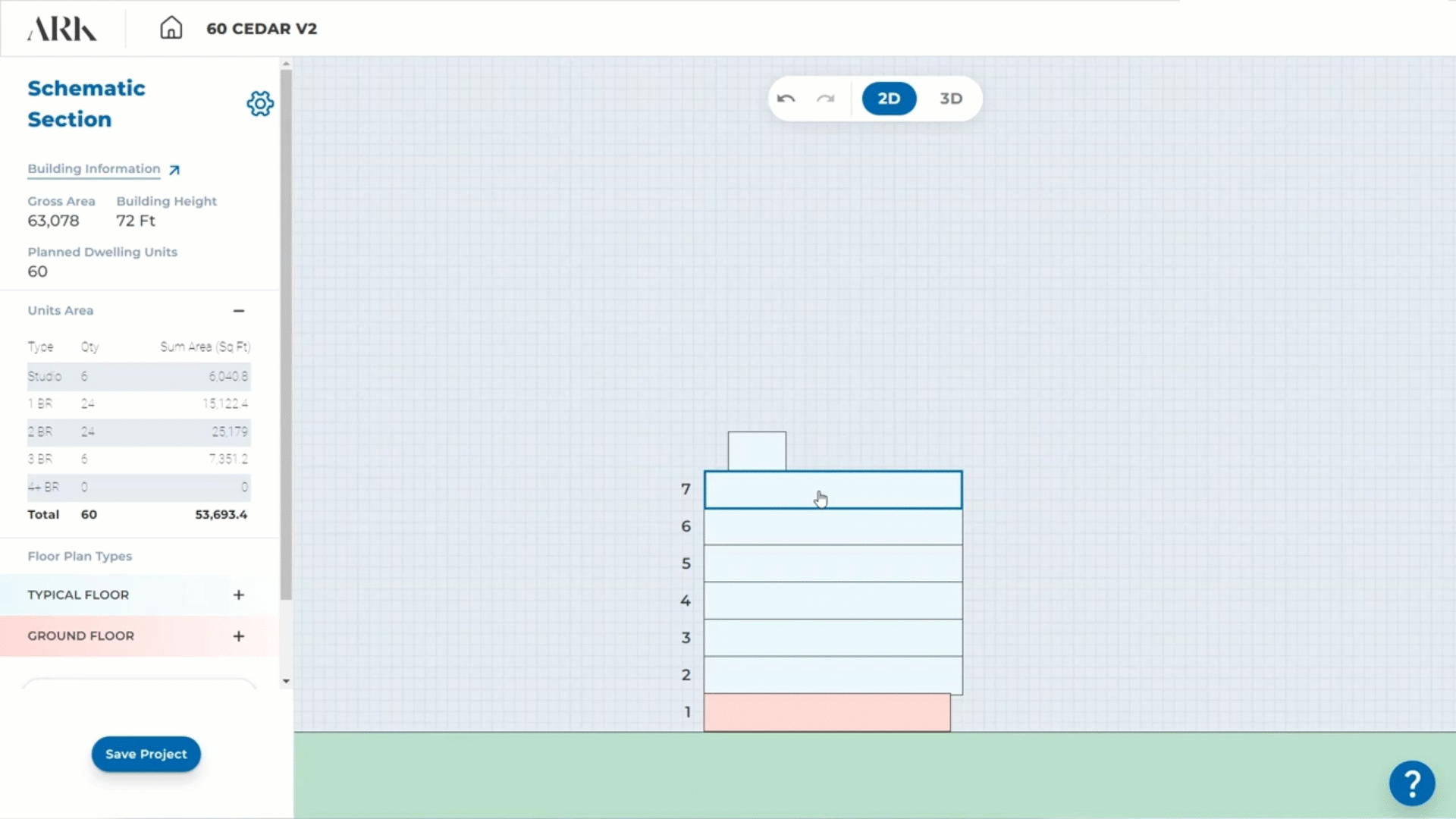

Create a new floor type.

Click on the pen tool and edit the new type.

Click on floor type.

Click on +

Click on –

Set floor height for every floor type (in inches)

Click on “create cellar floor plan”

“Home screen”, Click on “Create new project”

(Up to 3 projects for Lite users)

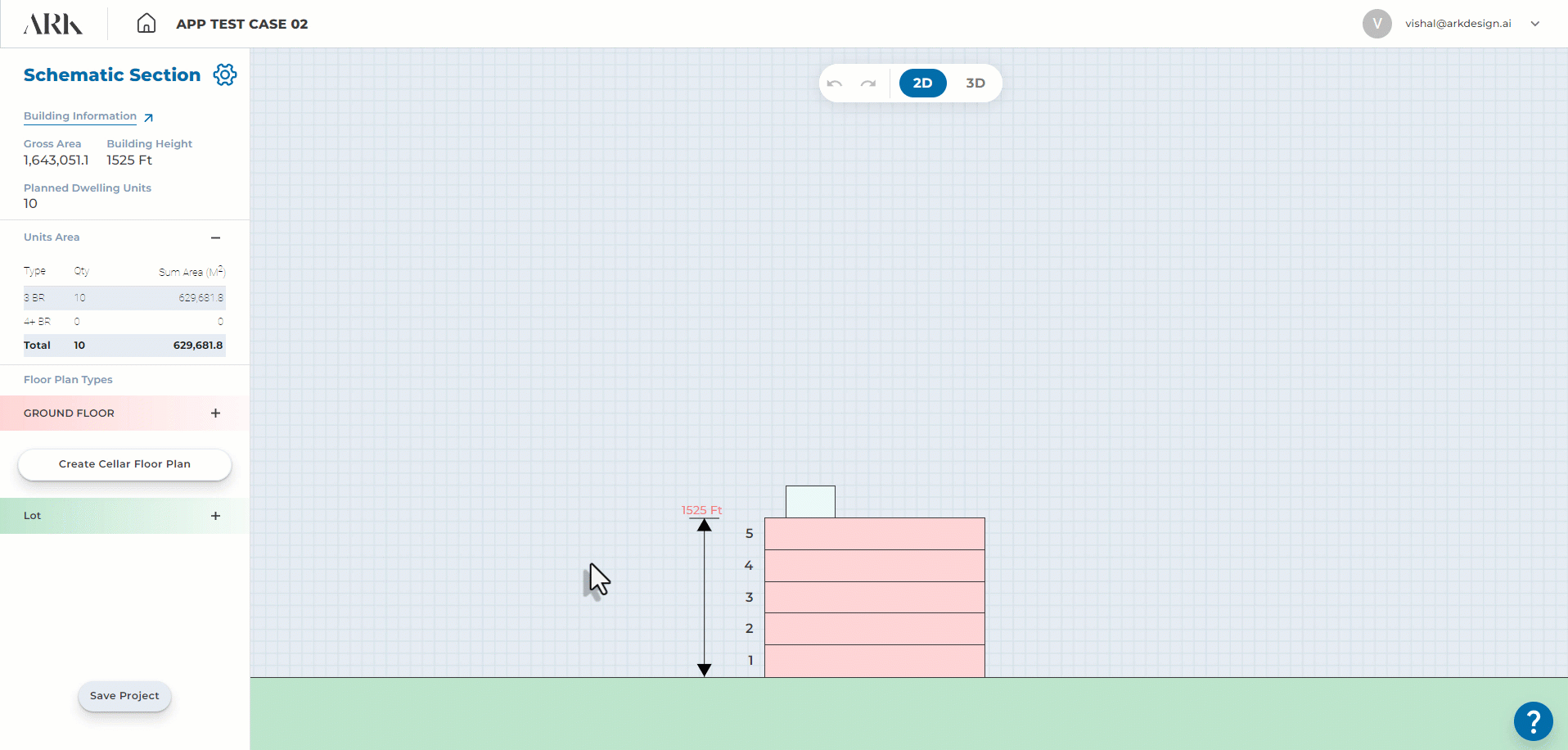

Upper right menu: “Download Project”

(Pro users)

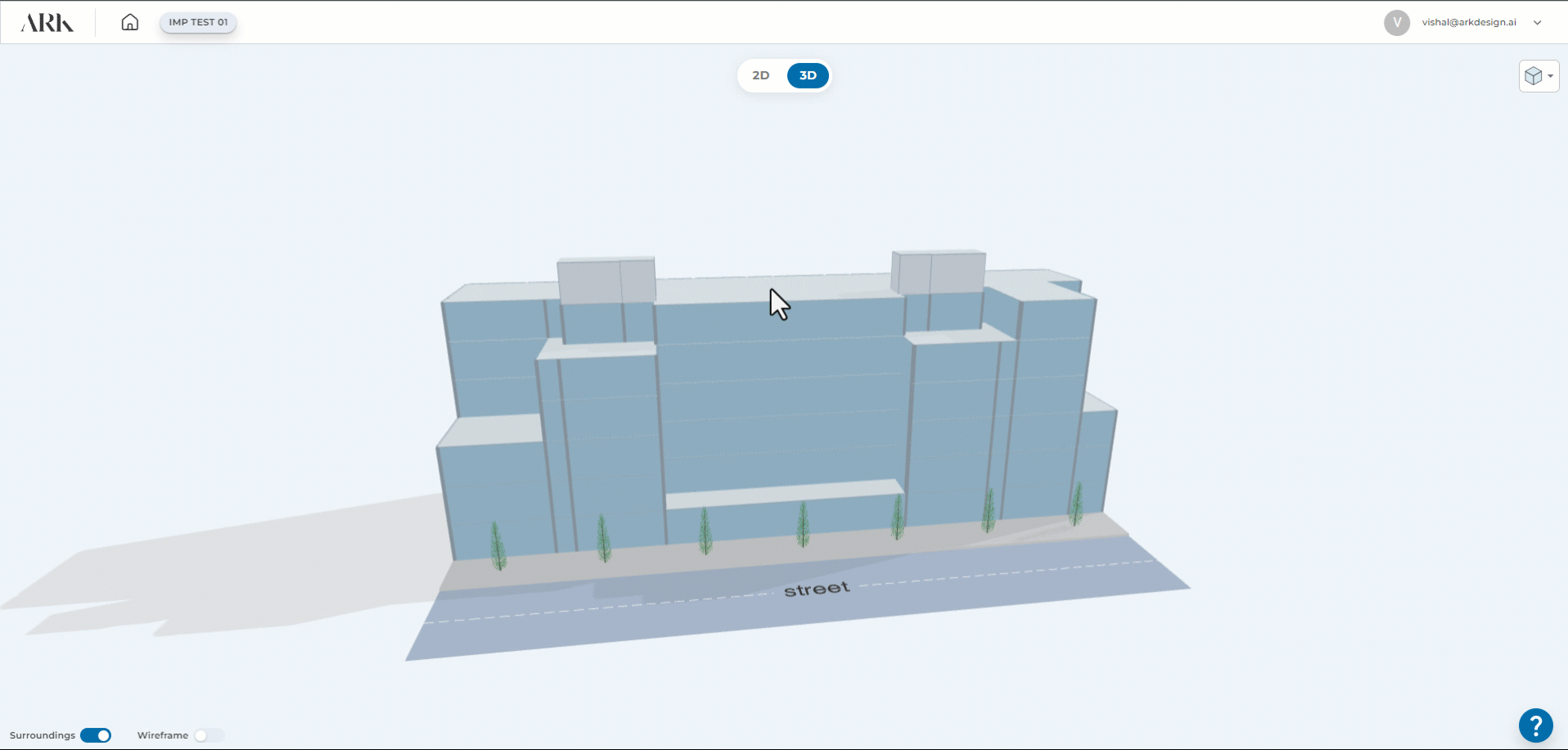

Go to the upper bar

Click on the 2D

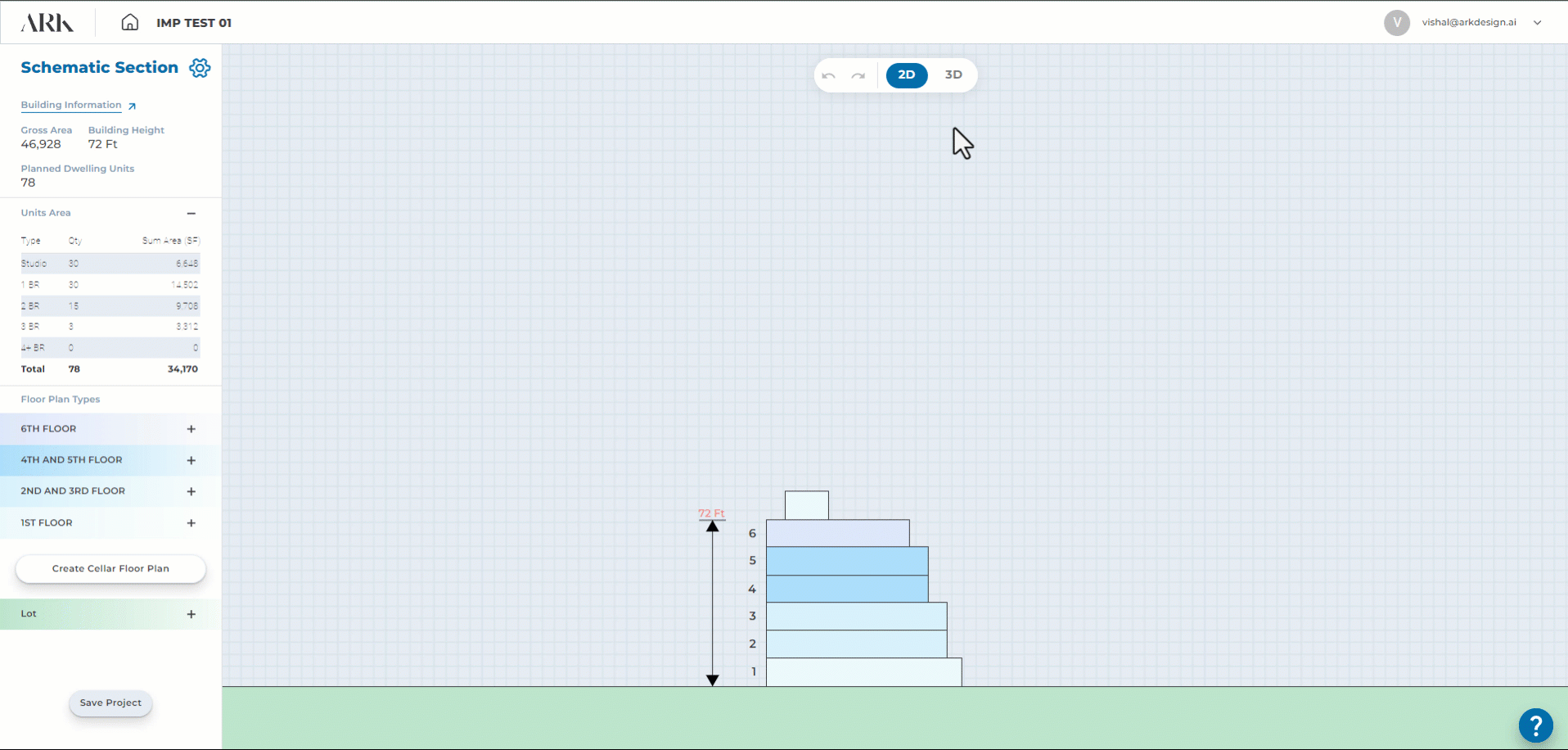

Go to the upper bar

Click on the 3D

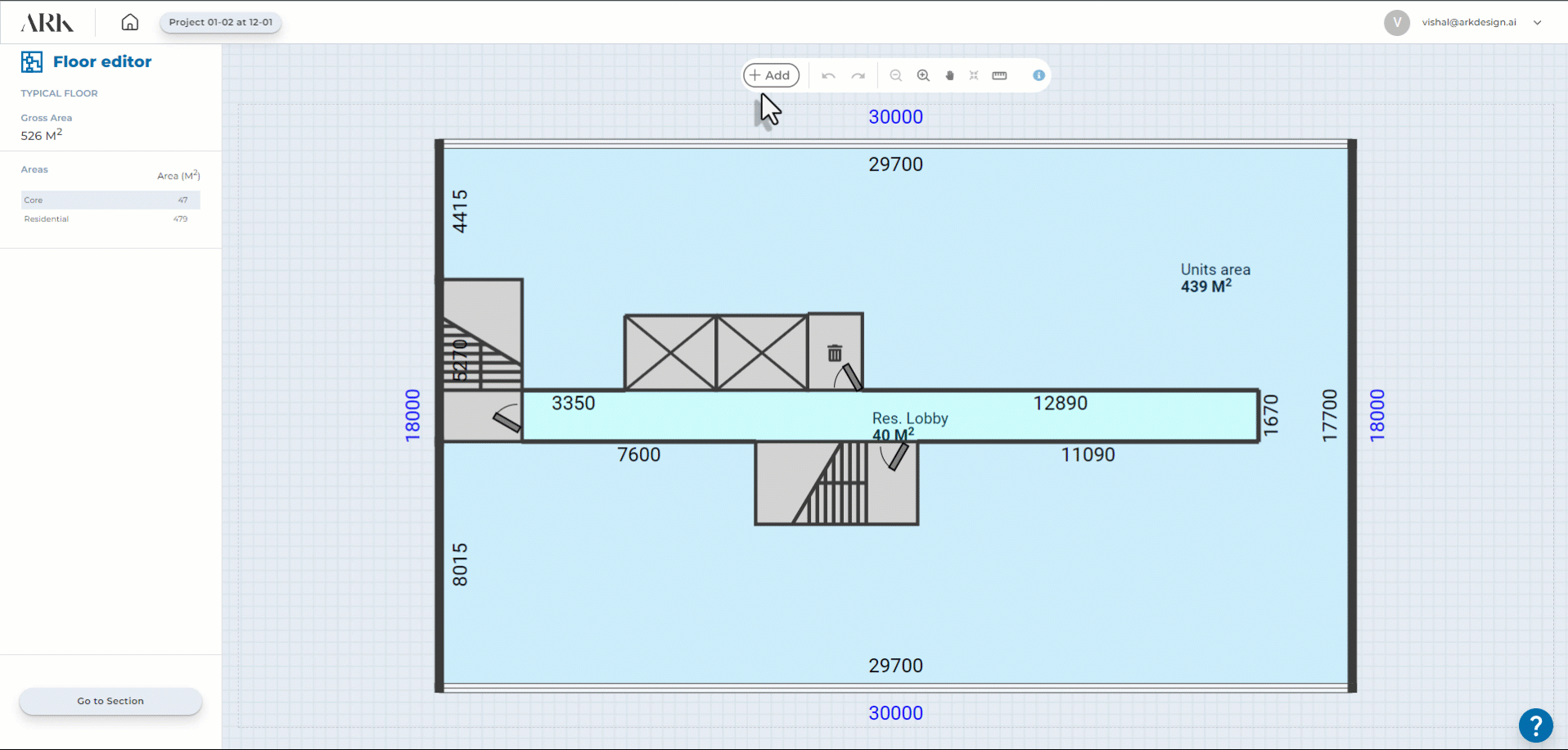

Go to the upper bar

Click on the Undo symbol

Go to the upper bar

Click on the Redo symbol
